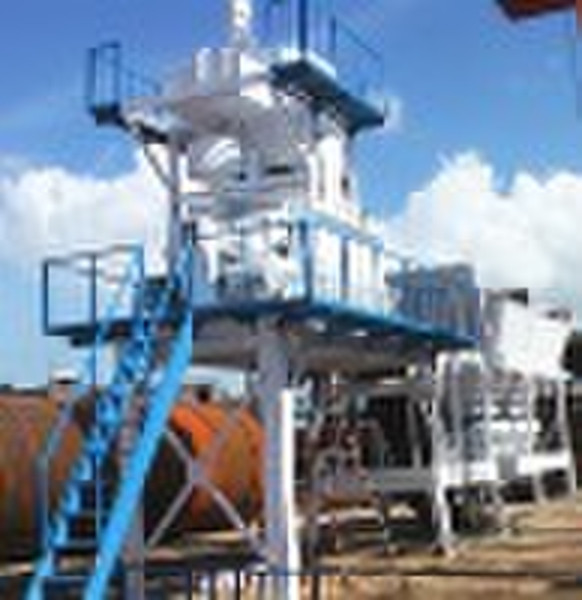

YHZS Series of Mobile Concrete Mixing Plant

YHZD(S) Series of Mobile Concrete Mixing Station/mobile concrete batching plant/mobile concrete mixer YHZS (D) series of mobile concrete mixing plantYHZS (D) series of mobile concrete mixing plant is a new type of trailerable mobile concrete mixing plant. It is your best choice for mobile operations in various constructions such as highway, railway, architecture, municipal engineering, bridge, port and hydropower station. Its structure is unique with noveltyto combine various functions of collecting, weighing, mixing and conveying into a trailer unit for excellent mobility. We have absorbed the worldwide advanced technologies on its design to ensure accurate and reliable weighing, even and effective mixing, and fast conveying. It is highly reliable with easy operation and transportation. It is capable of mixing dry hardness, half dry hardness, plastic concrete. Besides, it is simple in operation, mobile in site-transfer and excellent in reliability. May be moved anywhere on hauling, may be ready for using on settling down. YHZS(D) Series of Mobile Concrete Mixing Plant Main Technical SpecificationsmodelYHZD25YHZS50YHZS75Production (m3/h)255075MixerType JD500JSJ1000JSJ1500Power (kW) 1×18.52×18.52×30Output (m3) 0.511.5Grain Size (mm) ≤60≤60≤80BatcherHopper Capacity(m3) 466Hopper Quantity 444Conveyor Capacity (t/h)200400400Weighing ScopeAccuracyAggregate(kg) 1000±2%2000±2%3000±2%Cement (kg) 300±1%600±1%800±1%Water (kg) 200±1%300±1%400±1%Admixture (kg) 20±1%20±1%20±1%Trailed speed(km/h)151515Wheel distance(outside)(mm)280034003400Turning radius(mm)111515Total weight(kg)200002500032000Power(kW)356590Discharge Height (m)2.82.82.8Note 1,The total power does not include the power of screw conveyor 2,The quantity of hopper can be designed as required 3,All above specifications are subject to alteration without notice.
