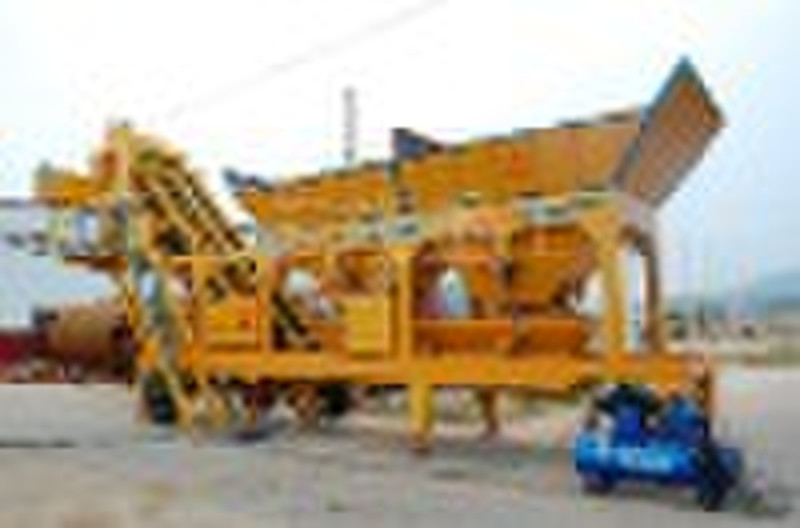

Mobile Concrete Batching Plant

Mobile ConcreteBatching Plant,Portable Concrete Mixing Plant,Concrete Batching Station The salient features are : Zero foundation cost/time mobile Compact design for easy transportation & shifting Loading of aggregate/sand hoppers by tractor mounted loaders Fully automatic plant Capability of electronic weighing of aggregates, sand, water and cement Main Technical Specifications Model YHZD25 YHZS50 YHZS75 Production (m3/h) 25 50 75 Mixer Type JD500 JSJ1000 JSJ1500 Power (kW) 1×18.5 2×18.5 2×30 Output (m3) 0.5 1 1.5 Grain Size(mm) ≤60 ≤60 ≤80 Batcher Hopper Capacity (m3) 4 6 6 Hopper Quantity 4 4 4 Conveyor Capacity (t/h) 200 400 400 Total weight(kg) 20000 25000 32000 Power (kW) 35 65 90 Discharge Height (m) 2.8 2.8 2.8 Note: The QTY of hopper can be designed as your requirements and the total power does not include the power of screw conveyor.
